    How to Enable SCIM in a Custom Okta App?

    Avatar
    Secure Code Warrior Elves
    • Updated
    Follow

    This article will walk you through the steps required to enable and configure SCIM provisioning for your custom Okta app.

    NOTE: If you use the official Secure Code Warrior Okta application, please check this article for SCIM configuration.






    Enable SCIM

    Before you start, please generate a SCIM API key using the instructions in this article Automated User Provisioning with SCIM



    Step 1

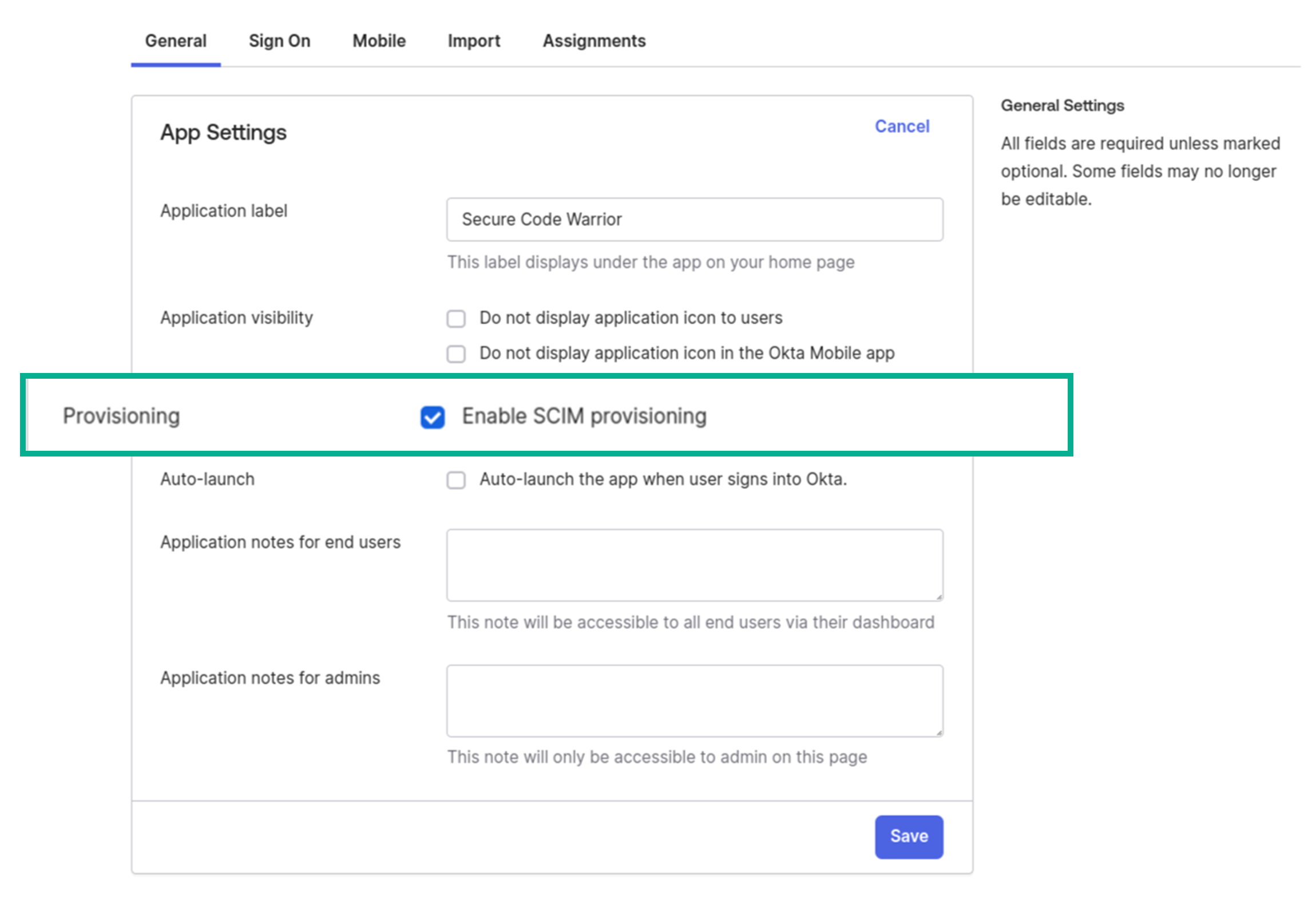

    Select the Secure Code Warrior application, navigate to the 'General' tab, and then click 'Edit' to enable the 'SCIM provisioning' option.





    Okta custom appSCIM-1 .png





    Step 2

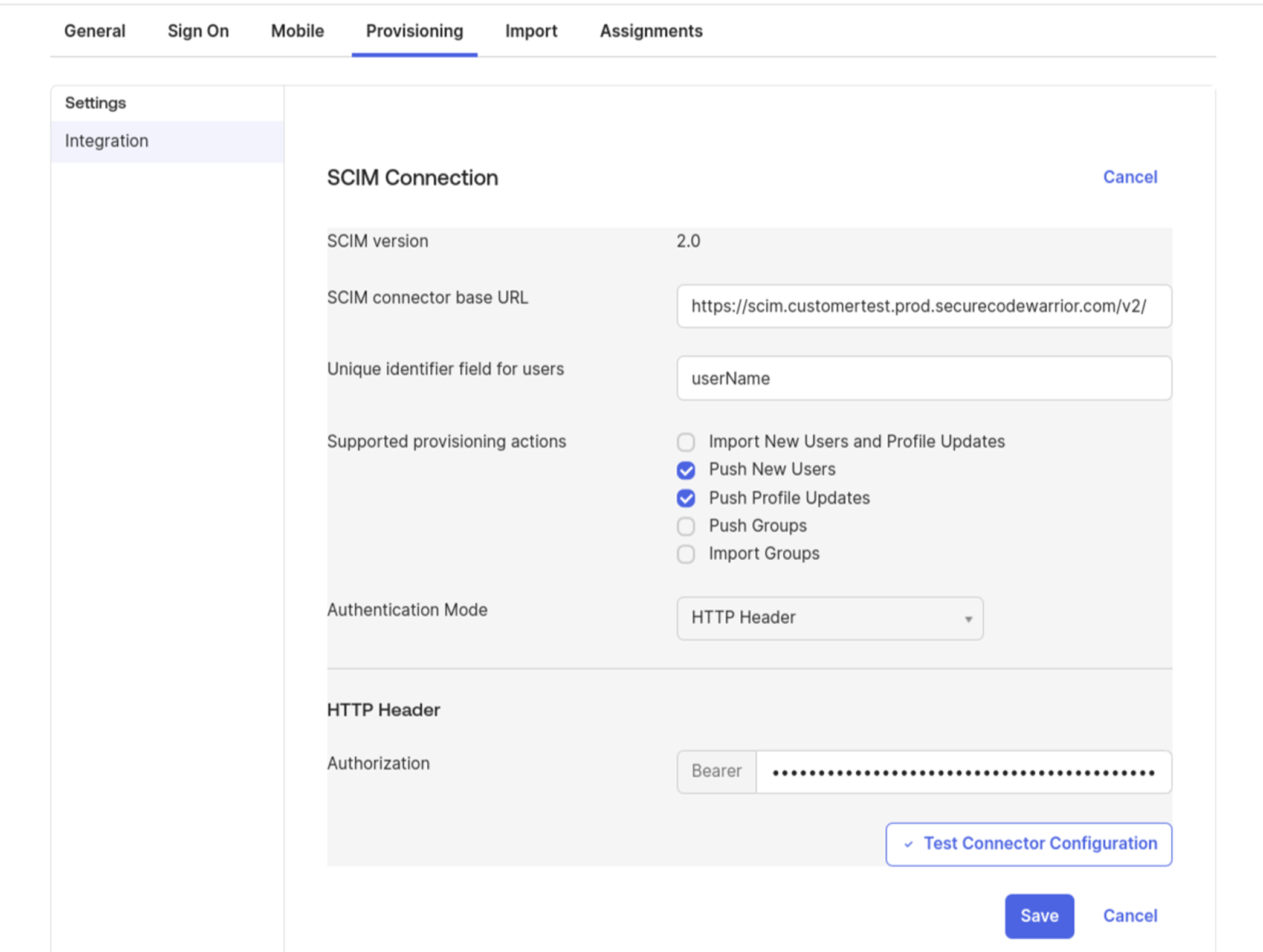

    Click the 'Provisioning' tab and hit the 'Edit' button to set up the SCIM connection:



    Field Value
    SCIM connector base URL
    • Production:
      • US: https://scim.prod-us.prod.securecodewarrior.com/v2/
      • EU: https://scim.prod-eu.prod.securecodewarrior.com/v2/
    • Test environment:
      • https://scim.customertest.prod.securecodewarrior.com/v2/
    Unique identifier field for users userName
    supported provisioning actions
    • Push New Users
    • Push Profile Updated
    Authentication Mode HTTP Header
    HTTP Header - Authorization Please enter the SCIM API key







    Custom Okta SCIM - 2 (1).png




    Click the 'Test connector Configuration' button then hit save



    Step 3

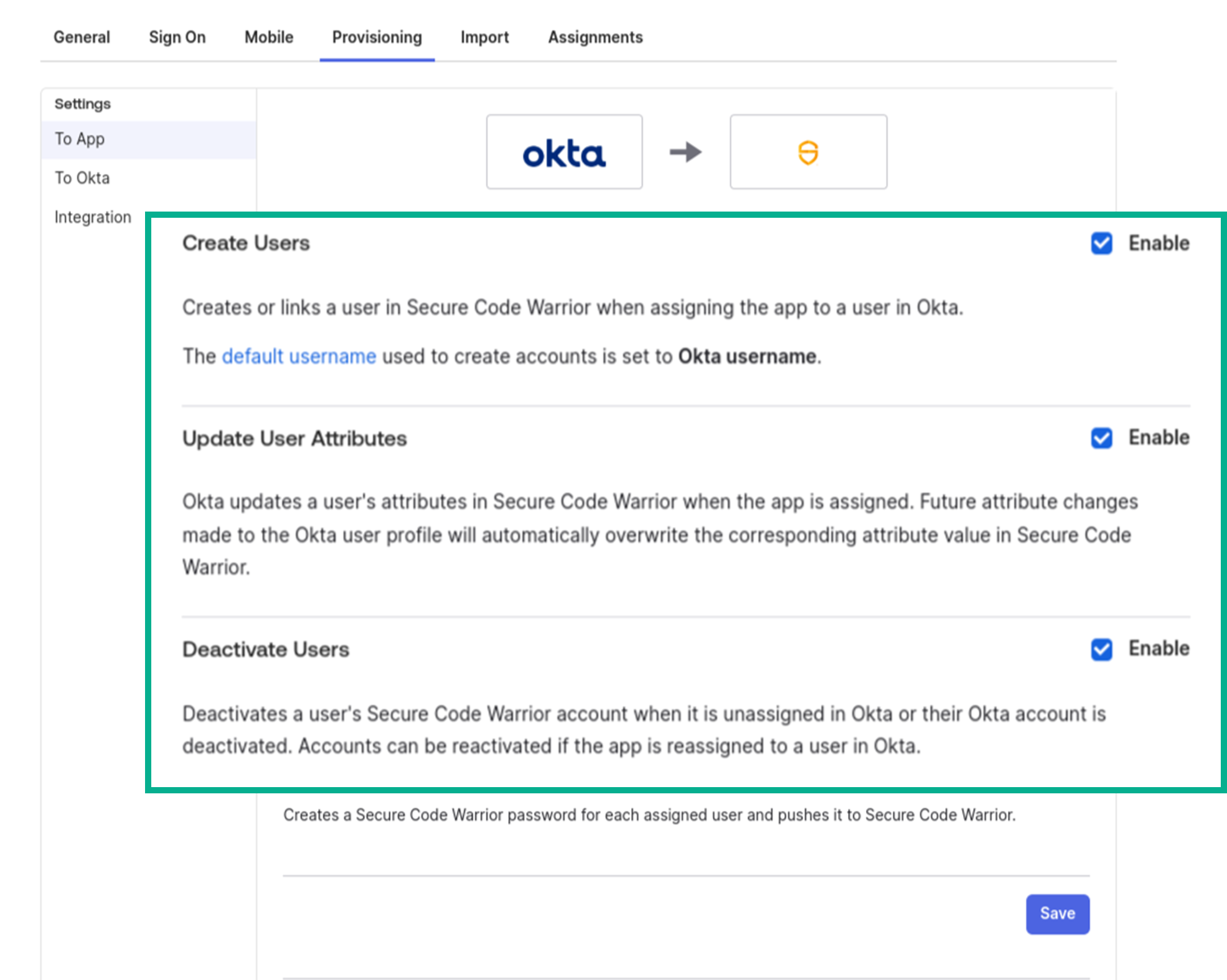

    From the 'Provisioning' tab, click the "To APP' option, then click 'Edit' to enable the following options:

    • Create Users
    • Update User Attributes
    • Deactivate Users

    CustomOktaSCIM -3.png

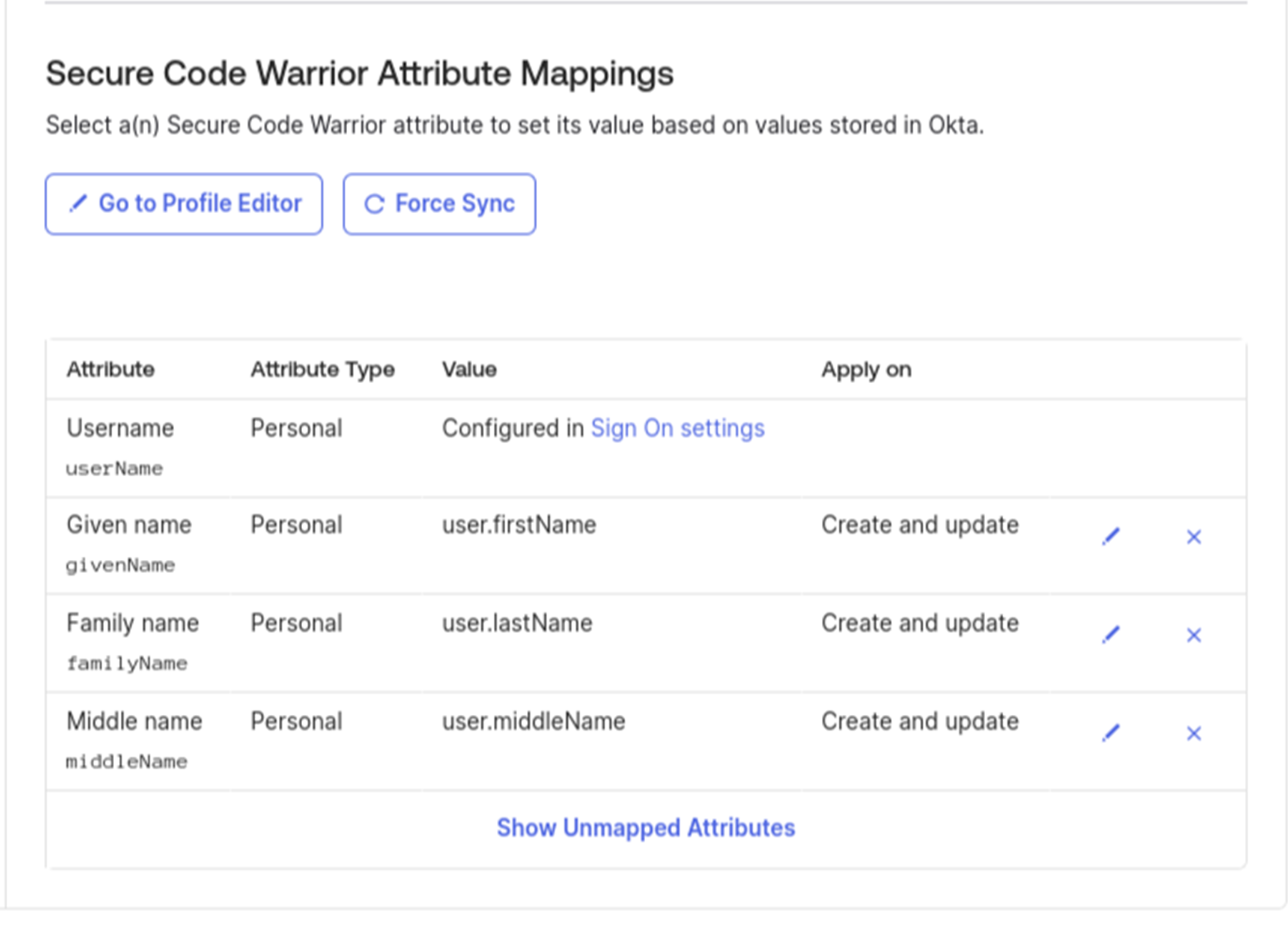

    Remove Unsupported Attributes

    Navigate to 'Provisioning' --> 'To App'  and scroll down to the 'Attribute Mappings" section to remove all the unsupported attributes and keep the standard attributes that are currently supported.





    Secure Code Warrior Custom Attributes (Team, Role, and tags)

    You can leverage SCIM to manage Teams, Roles, and tags in Secure Code Warrior by adding these attributes to the profile.



    Step 1

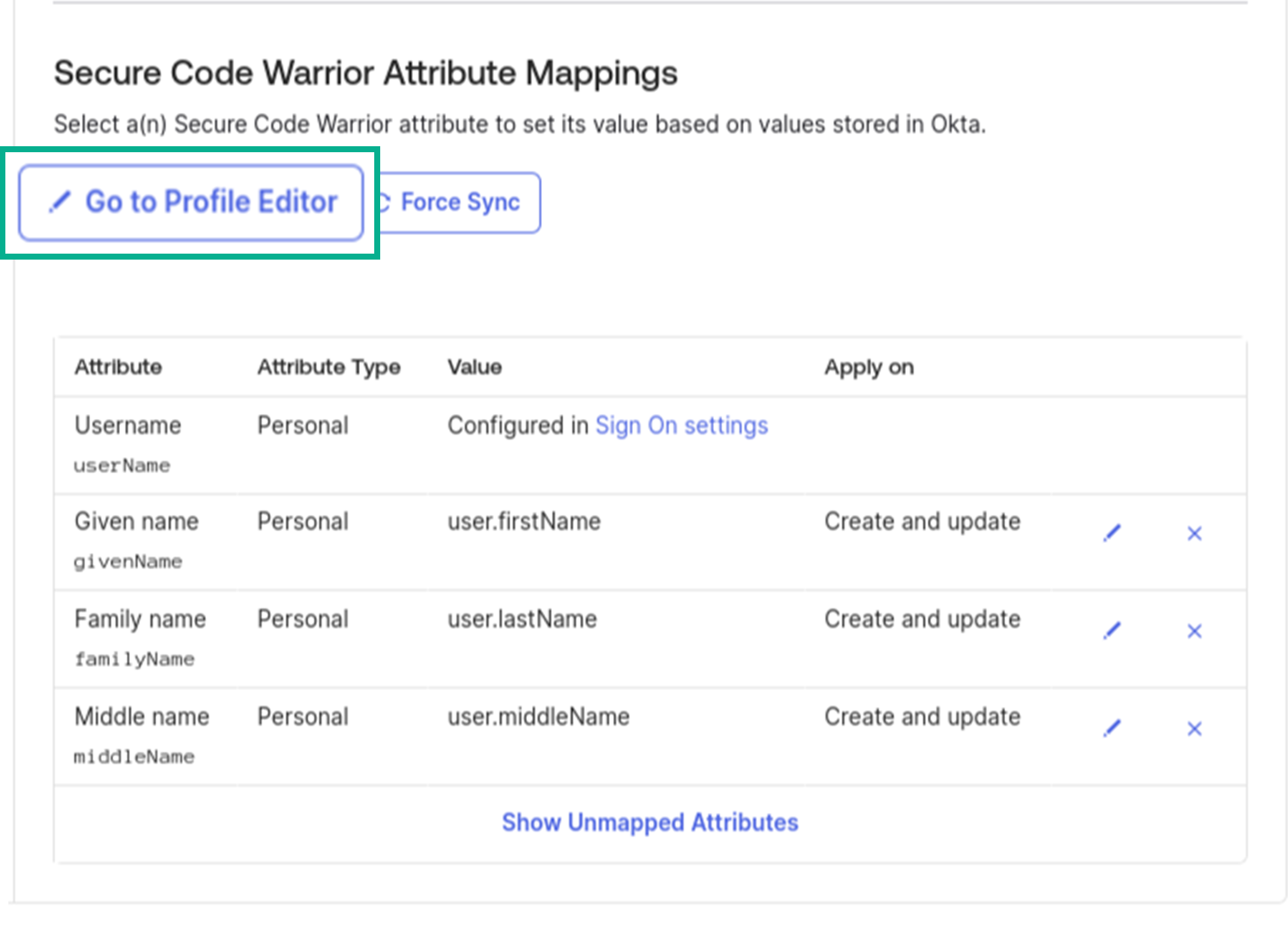

    Navigate to 'Provisioning' --> 'To App'  and click the 'Go to Profile Editor' button

    Custom attributes-1.png



    Step 2

    To add each attribute, click the 'Add attribute' button

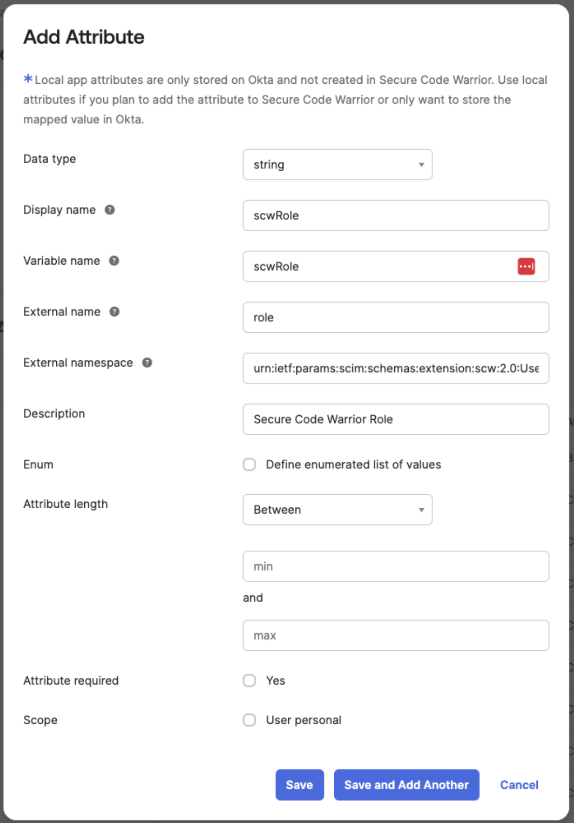

    Role Attribute

    Add the Role attribute using the following values

    Field Value
    Data Type string
    Display name scwRole
    Variable name scwRole
    External name role
    External namespace urn:ietf:params:scim:schemas:extension:scw:2.0:User
    Description Secure Code Warrior Role





    • roleattribute.png
        •

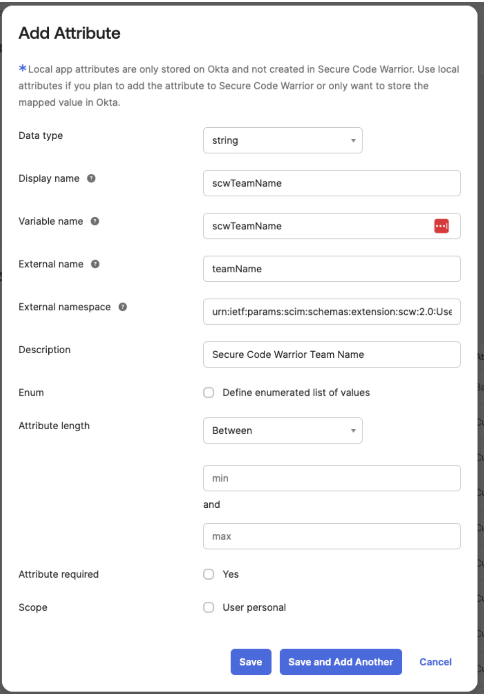

    Team Attribute

    Add the Team attribute using the following values

    Field Value
    Data Type string
    Display name scwTeamName
    Variable name scwTeamName
    External name teamName
    External namespace urn:ietf:params:scim:schemas:extension:scw:2.0:User
    Description Secure Code Warrior Team Name

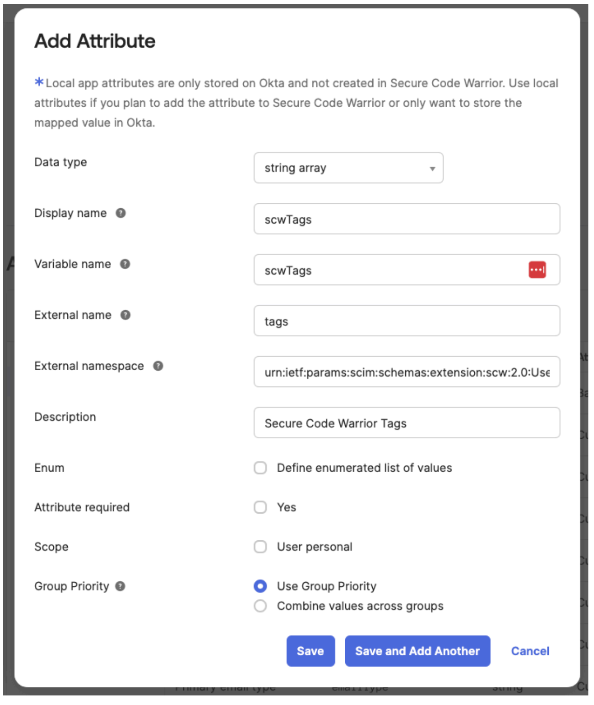

    Tags Attribute

    Add the tags attribute using the following values

    Field Value
    Data Type string array
    Display name scwTags
    Variable name scwTags
    External name tags
    External namespace urn:ietf:params:scim:schemas:extension:scw:2.0:User
    Description Secure Code Warrior Tags
    Group Priority  Choose whichever option you prefer
      • tagsattribute.png
